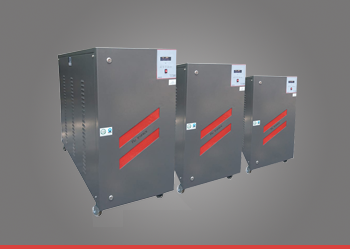

Our online UPS system is manufactured with a rugged design for Industrial environment and suitable for high end power requirements. It can withstand vibrations, dust, mechanical stress and other environmental disturbances. Available in three phase input - single phase output and three phase input - three phase output. This product comes with a built-in transformer for Galvanic isolation between input and output and suitable for applications requires isolation from input to output. With better crest factors suitable for loads with surge current requirements.

SALIENT FEATURES:
  • Reliable and trouble free operation.
  • Highly Efficient.
  • Fully redundant and configuration design.
  • Excellent quality and high durability.
  • PWM Technology with High Voltage Protection on mains.
  • Ruggedised construction, Excellent quality and high durability.
APPLICATIONS:
  • Reliable and TROUBLE FREE OPERATIONS.
  • Network Towers, Telecommunication Equipment and electronic exchanges.
  • IT companies, BPO s and Corporate Offices etc.
  • CNC Machines, Laser Machines and Molding Machines etc.
  • Office Automation, Research Labs, Laboratory equipment’s.
  • Complexes, Hospital, Nursing Homes.
  • Processors, Phototypesetters, Photographic Equipment’s.
  • Printing Machinery and Packaging Industries.
  • Medical Equipment’s, X-Ray Machines, E.C.G. Machines I Monitors, MRI, CT Scans Etc.
Technical Specification
Mode of Charging Boost Cum Trickle Charging
Load Crest Factor 5 :1
Battery (Type) Tubular / SMF
Backup Provisions 15 Min. to 8 Hours
Battery Voltage 120V-576V DC
Recharging Time 8 to 12 Hours
Display LCD display for all parameters
Indications (LCD Display) Mains ON/ Inverter ON/ Inverter Trip / Battery Low/ Invertor U/V-O/VTrip
Alarms Battery Low, Overload, Inverter trip.
Protections Input: Mains Over Voltage / Under Voltage / Spikes/Surges/Single phase.
Battery: Over Charge/ Low Voltage.
Output: Over voltage / Over Load / Short Circuit/ Single phase.
Bypass Switch : Inbuilt Manual Bypass
Built-in Output solation Transformer for Galvanic Isolation.
Temperature Operating: 0°C 40°C ; Storage :- 10°C 65° C
Humidity 0% to 95% without Condensation
Noise <60 dB
Optional Features Static Bypass Switch / Software Interface
