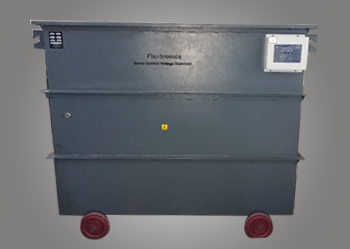

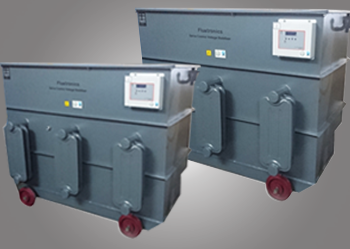

Our latest technological innovations have been able to manufacture a precisely controlled range of Three Phase Oil Cooled Servo Stabilizer. Our product is fabricated with superior quality raw material and can be customized as per the specifications of clients. With increasing and erratic load factors , long transmission lines and many other factors our products is manufactured to the best of the standards which makes the interconnected equipment function erratically even in fluctuating voltages. It also reduces breakdown and maintenance cost.We are also considered as a specialist in offering a wide range of Three Phase Oil Cooled Servo Stabilizer

SALIENT FEATURES: SALIENT FEATURES:
  • Reliable and trouble free operation.
  • Very High Efficiency and Fast response.
  • Low failure rate in all weather conditions (Indoor and Outdoor models)
  • Solid stateMicro controlled circuit.
  • Rugged AC synchronous motor.
  • Precise electronic sensing for all trips.
  • Less active component avoids failure ratings.
  • Output regulation of 0.5% can be achieved.
  • Zero Waveform Distortion
  • No effect of power factor.
  • Ruggedised construction, Excellent quality and high durability.
  • Suitable for unbalanced input voltage conditions and unbalanced load conditions.
APPLICATIONS:
  • Network Towers, Telecommunication Equipment and electronic exchanges.
  • Cold Storage ,Central Air-Conditioning Plants, Processing Plants,
  • Chemical Industries, Textile Industries.
  • CNC Machines, Laser Machines and Molding Machines etc.
  • Lifts, Escalators and Elevators and Fuel Stations.
  • Office Automation, Research Labs, Laboratory equipment’s.
  • Paper mills, Distilleries and Water purification Plants.
  • Complexes, Hospital, Nursing Homes, Hotels/Resorts and Domestic Purpose.
  • Processors, Phototypesetters, Photographic Equipment’s.
  • Printing Machinery and Packaging Industries.
  • X-Ray Machines, E.C.G. Machines, I Monitors, MRI, CT Scans, etc.
  • Water pumps and irrigation plants.
Technical Specification
MODEL OIL COOLED
PARAMETERS TECHNICAL DATA
Rating 15KVA-2000KVA
INPUT VOLTAGE RANGE 245V-465V, 245V-500V, 295V-465V, 340V-470V, 360V-470 (Ph-Ph) (customized Ranges shall be undertaken)
FREQUENCY 50Hz ±5%
OUTPUT VOLTAGE 380V/400V/420V (P-P) ( Or As Per Application Can be Set )
REGULATION ±1% Or 5% Or 10% (Or As Per Application Can be Set )
FREQUENCY Same as Input
EFFICIANCY UPTO 98%
EFFECT OF LOAD POWER FACTOR NIL
CORRECTION SPEED 70V/SEC (P-N)
INSULATION CLASS F
INDICATIONS/METERING (2x16 LCD DISPLY) Mains On, Output Ok, Input Voltage, Output Voltage, Output Current, Frequency, Low Cut-Off, High Cut-Off,
PROTECTION Input breaker, Output Relay/Contactor for High and Low Cut-Off, Fuse for Control Circuit, Manual Bypass Switch, Phase reversal protection and Overload Tripping.
Optional Features Inbuilt Isolation/Stepdown Transformer Change over switch for emergency bypass (customized designs shall be undertaken)
OPRATING TEMPERATURE 0°C to 55°C,
HUMIDITY Up to 95% Non-Condensing
CABINET BOX CNC-IP 45, Optional Higher IP Offered
Transformer Oil IS-335 Grade
