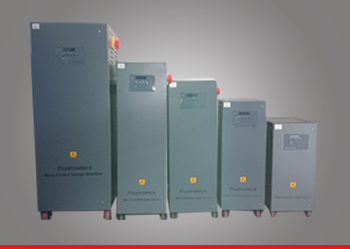

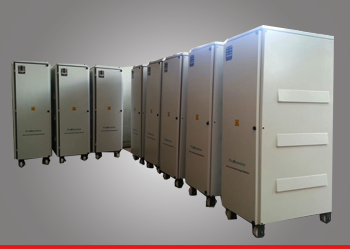

Our Three Phase Air Cooled Servo Stabilizer is manufactured with our high tech infrastructure and the use of modern technology which makes it flawless and ideal for precise control of output voltage. These kinds of Voltage Stabilizer are thoroughly helpful to regulate the voltage fluctuation with strong state electronic circuitry. With our robust and wide manufacturing base, each and every unit is designed and manufactured by us is of superior quality which significantly increases the life of appliances and machine contacted through it. It also reduces breakdown and the cost maintenance.

SALIENT FEATURES:
  • Reliable and trouble free operation.
  • Very High Efficiency and Fast response.
  • Low failure rate in all weather conditions (Indoor and Outdoor models).
  • Solid state Micro controlled circuit.
  • Rugged A.C.synchronous motor.
  • Precise electronic sensing for all trips.
  • Less active component avoids failure ratings.
  • Output regulation of 0.5% can be achieved.
  • Zero Waveform Distortion.
  • No effect of power factor.
  • Ruggedised construction, Excellent quality and high durability.
  • Suitable for unbalanced input voltage conditions and unbalanced load conditions.
APPLICATIONS:
  • Network Towers, Telecommunication Equipment and electronic exchanges.
  • Cold Storage ,Central Air-Conditioning Plants, Processing Plants,
  • Chemical Industries, Textile Industries.
  • CNC Machines, Laser Machines and Molding Machines etc.
  • Lifts, Escalators and Elevators and Fuel Stations.
  • Office Automation, Research Labs, Laboratory equipment’s.
  • Paper mills, Distilleries and Water purification Plants.
  • Complexes, Hospital, Nursing Homes, Hotels/Resorts and Domestic Purpose.
  • Processors, Phototypesetters, Photographic Equipment’s.
  • Printing Machinery and Packaging Industries.
  • Medical Equipment’s, X-Ray Machines, E.C.G. Machines I Monitors, MRI, CT Scans Etc.
  • Water pumps and irrigation plants.
Technical Specification
MODEL AIR COOLED
PARAMETERS TECHNICAL DATA
Rating 3KVA-250KVA
INPUT VOLTAGE RANGE 245V-465V, 245V-500V, 340V-470V, 360V-470 (Ph-Ph) (customized Ranges shall be undertaken)
FREQUENCY 50Hz ±5%
OUTPUT VOLTAGE 380V/400V/420V (P-P) (or as per application can be set)
REGULATION ±1% Or 5% Or 10% (or as per application can be set)
FREQUENCY Same as Input
EFFICIANCY UPTO 98%
EFFECT OF LOAD POWER FACTOR NIL
CORRECTION SPEED 70V/SEC (P-N)
INSULATION Class F
INDICATIONS/METERING (2x16 LCD DISPLY) Mains On, Output Ok, Input Voltage, Output Voltage, Output Current, Frequency, Low Cut-Off, High Cut-Off,
PROTECTION Input breaker, Output Relay/Contactor for High and Low Cut-Off, Fuse for Control Circuit, Manual Bypass Switch, Phase reversal protection and Overload Tripping.
Optional Features EMI/RF Filter/ Inbuilt Isolation Transformer (customized designs shall be undertaken)
OPRATING TEMPERATURE 0°C to 50°C,
HUMIDITY Up to 95% Non-Condensing
CABINET BOX CNC-IP 45, Optional Higher IP Offered
