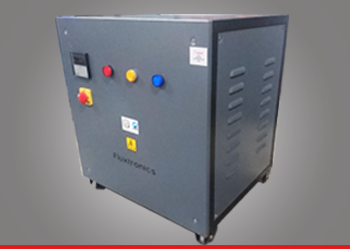

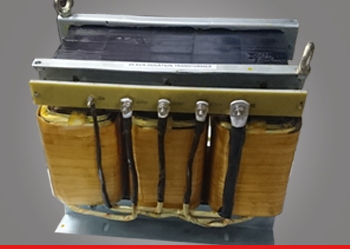

We are one of the leading manufacturers and suppliers of a wide range of air and oil cooled Isolation Transformers. Our product is designed where in the primary and secondary side windings are electrically and galvanically separated from each other, thus, there is a functional insulation by design. We manufacture 1KVA to 1000KVA capacity designed for isolating sensitive equipment’s from Line Voltage Transients, Spikes &Surges. Also removes EMI/RFI sound, power switching transients and background spikes. Our quality assurance teams completely examine our products before hand over to the client’s.

SALIENT FEATURES:
  • Reliable and trouble free operation.
  • Very High Efficiency.
  • Low failure rate in all weather conditions (Indoor and Outdoor models)
  • Ruggedised construction, Excellent quality and high durability.
APPLICATIONS:
  • Network Towers, Telecommunication Equipment and electronic exchanges.
  • CNC Machines, Laser Machines and Molding Machines etc.
  • Office Automation, Research Labs, Laboratory equipment’s and Medical Equipment’s,
  • Processors, Phototypesetters, Photographic Equipment’s.
  • Printing Machinery and Packaging Industries.
Technical Specification
Mode AIR COOLED
Rating 0.5KVA to 30KVA
Input Voltage 220 Volts Ph-N
Transformer Ratio 1:1
Power Factor 0.8 lag to 0.8 lead
Frequency 50 Hz
VI Electric strength 1500 V AC for 120 sec.
 Insulation resistance More Than 100M Ohms.
Capacitance Coupling 0.01 PF 100 db.
Common Mode attenuation 100 db
Class Of Insulation Class B, H of F
Losses 5%
Ambient temperature 0-50°C
Duty Cycle Continuous
Lamination Cargo
Transformer case. Isolation Transformer: Single Phase


Technical Specification
PARAMETERS TECHNICAL DATA
Rating 0.5KVA to 30KVA
Input Voltage 415 Volts Ph-Ph
Output Voltage 415 Volts Ph-Ph
Systems Construction Delta / Star
Transformer Ratio 1:1
Regulation Better Than 4%
 Power Factor 0.75 Log to lead
 Frequency 50 Hz
VI Electric strength 2500 V AC for 120 sec.
Insulation Resistance More Than 1000M Ohms.
Capacitance Coupling 0.01 PF 100 db
Common Mode attenuation 100 db.
Class Of Insulation Class 'F'
Losses 5%
Ambient temperature 0-50°C
Duty Cycle Continuous
Lamination Cargo
